Gentle washing for food processing lines
The Bubble Washing Machine combines water movement and air bubbles to loosen soil and surface impurities while reducing harsh mechanical contact. A mesh conveyor carries the product through the tank and transfers it to the next preparation stage.
The system is suitable for leafy vegetables, fruits, selected seafood and other products that benefit from gentle continuous washing. Spray and filtration sections can be configured to improve water circulation and support daily cleaning.
Benefits in a complete line
- Even product contact with circulating wash water.
- Gentle handling for delicate fruits and vegetables.
- Connection with sorting, blanching, pre-cooling and IQF freezing.
- Stainless steel construction for hygienic production.
Technical information
| Configuration | Application | Construction |
|---|---|---|
| Bubble tank and mesh conveyor | Vegetables, fruits and selected seafood | SUS304 stainless steel |
| Optional functions | Spraying, filtration, impurity removal and line-speed control. | |

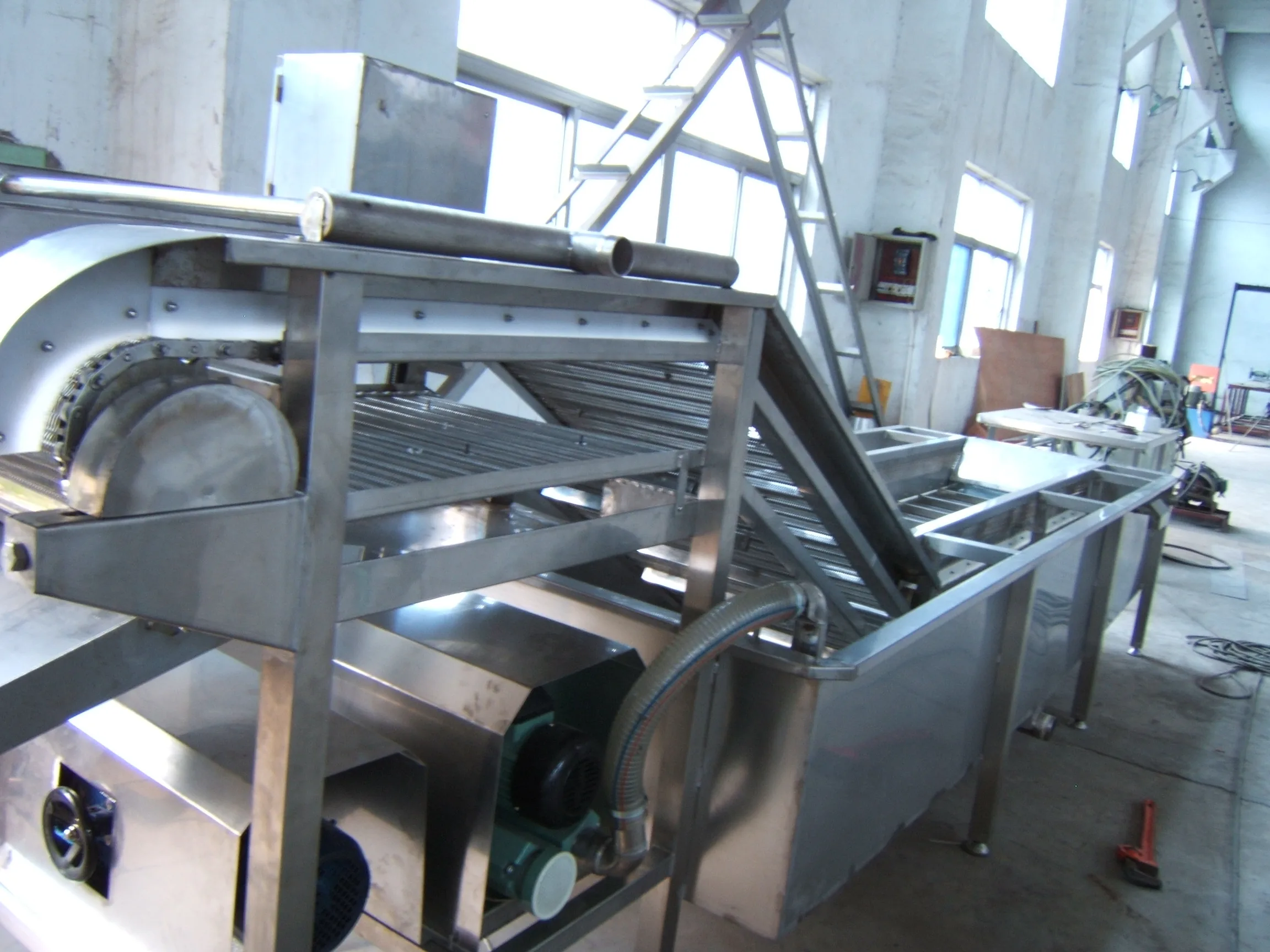

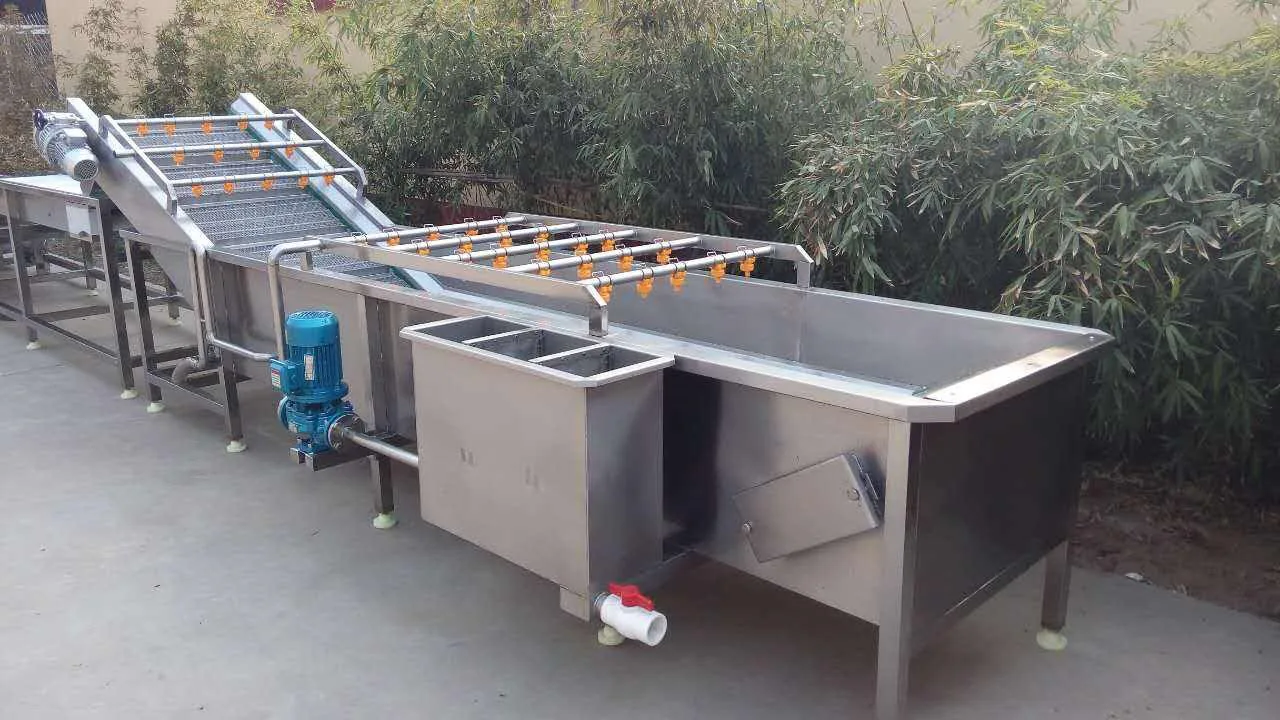

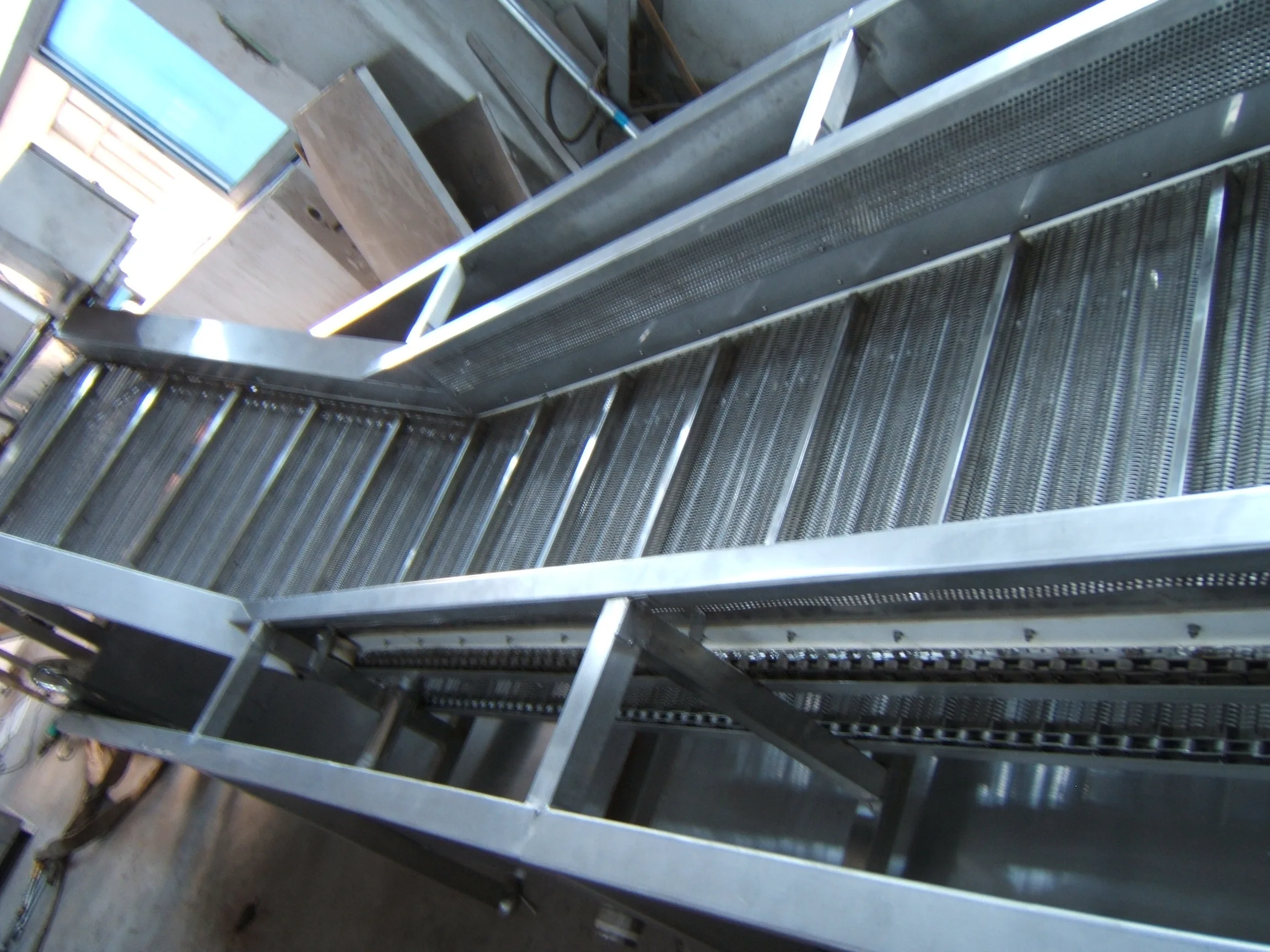

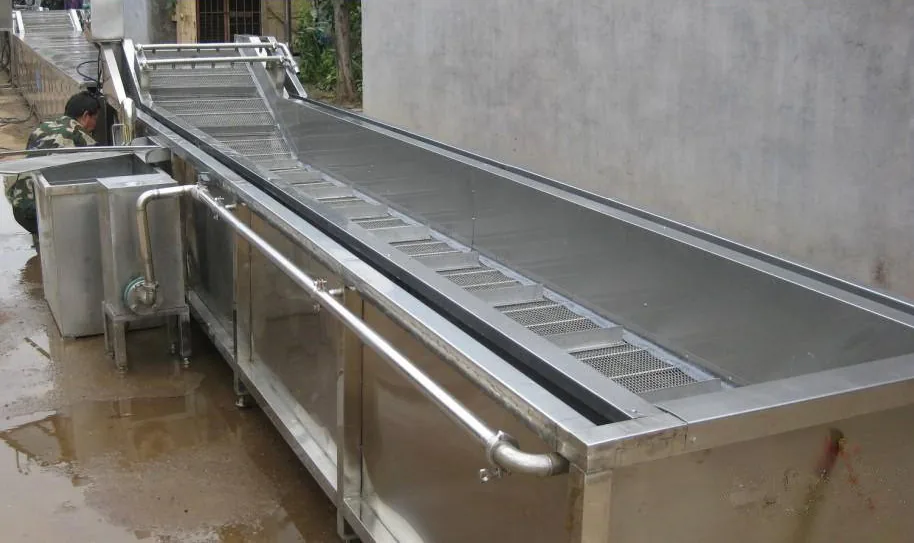

Product images
Technical specifications
| Dimensions | 5880*1600*1200mm |
|---|---|
| Installed Power | 3.3kw |
| Voltage | 380V, 50Hz |
| Water Consumption | 0.3~0.5T/h (recycled water) |
| Steam Consumption | / |
| Cooling Capacity | 50KW (condition: +45°C~-5°C) |
| Processing Capacity | 1.0T / H |
| Feeding Form | Mesh belt chain center width 600mm; frequency control; equipped with feeding, impurity removing, bubbling, spraying, and water filtration circulation devices |
| Electrical Control | Electrical components use Zhejiang Chint, and the transmission inverter uses Taiwan Delta |
| Material Description | The equipment is made of SUS304 stainless steel except standard parts such as motors and electrical components |
| Equipment Use | Used to cool blanched fruits and vegetables, reducing the center temperature to about 15°C |
