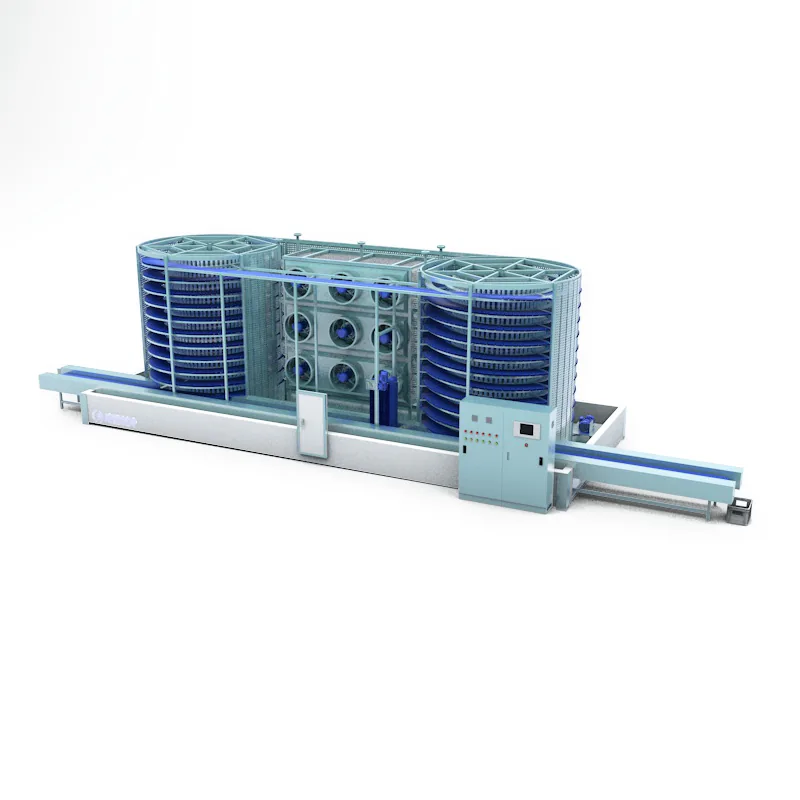

Spiral IQF Freezer for food processing lines

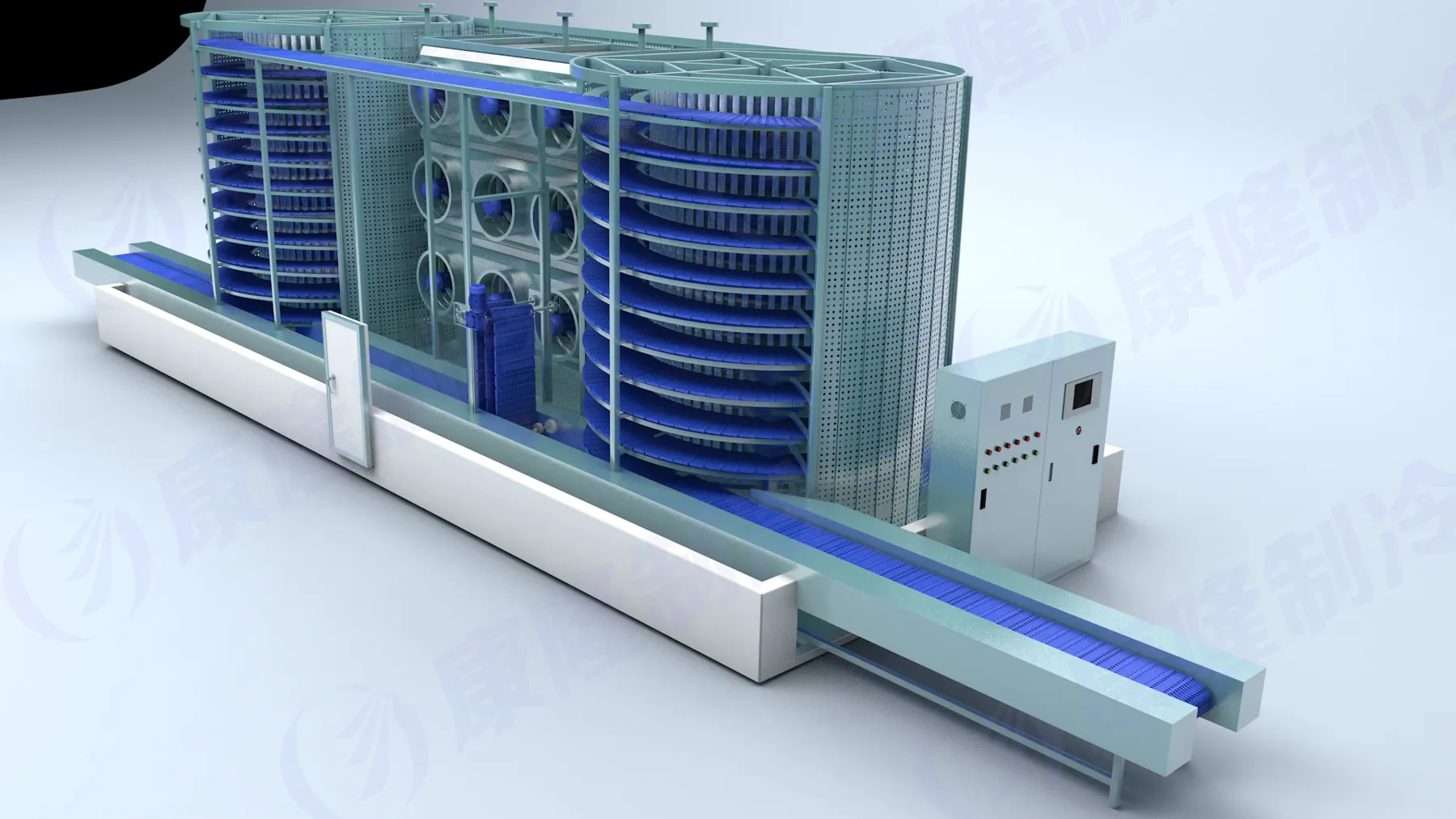

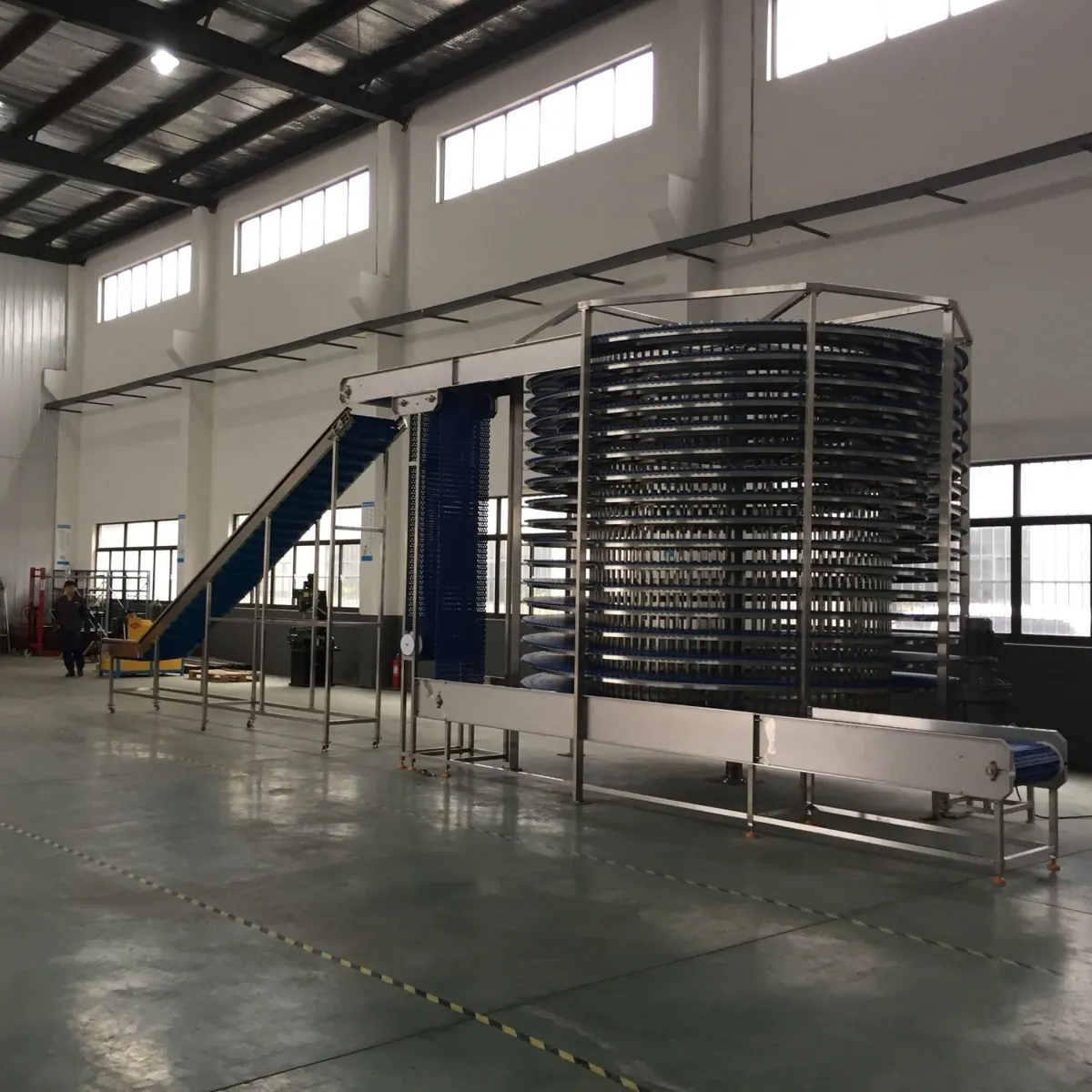

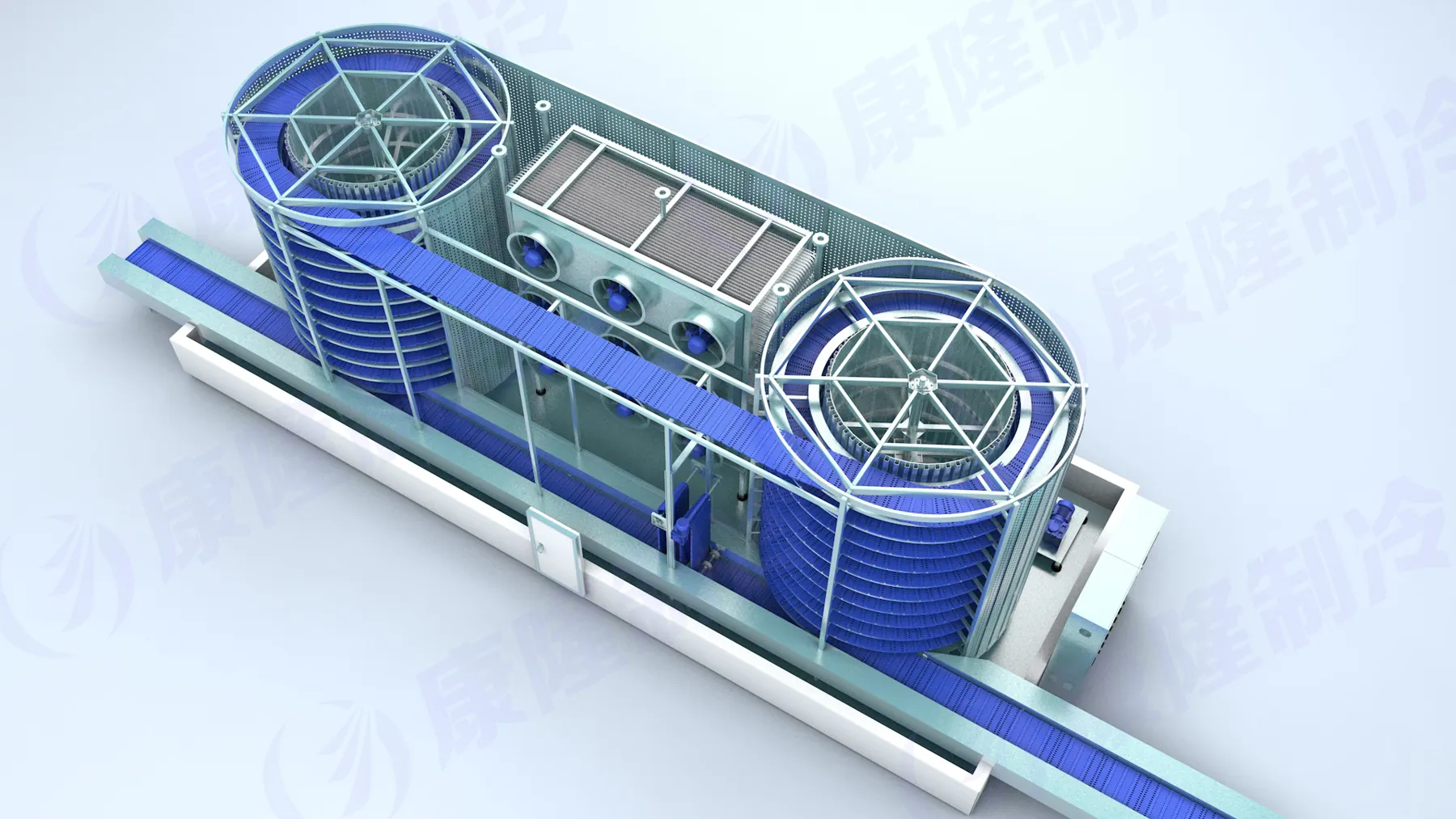

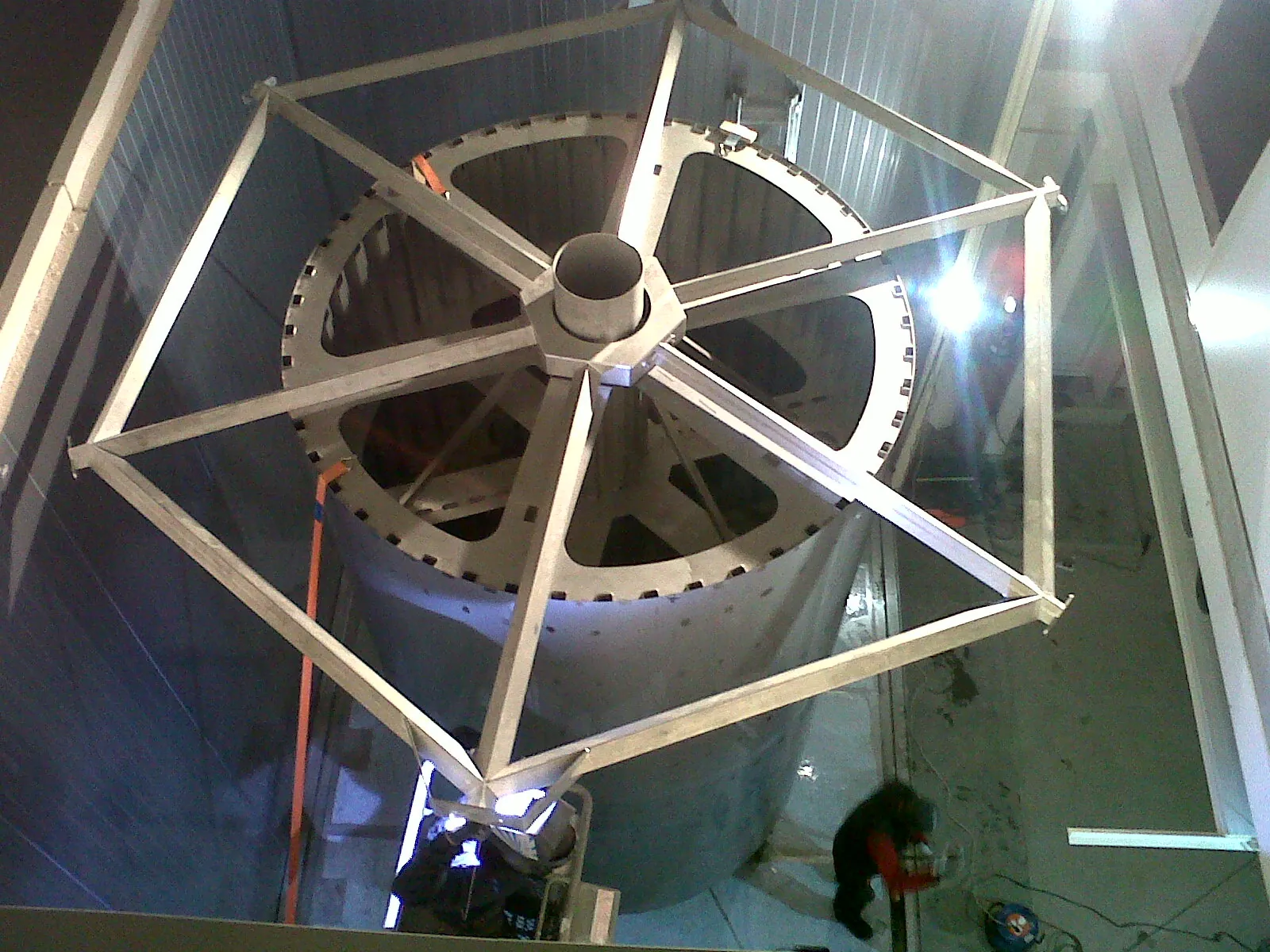

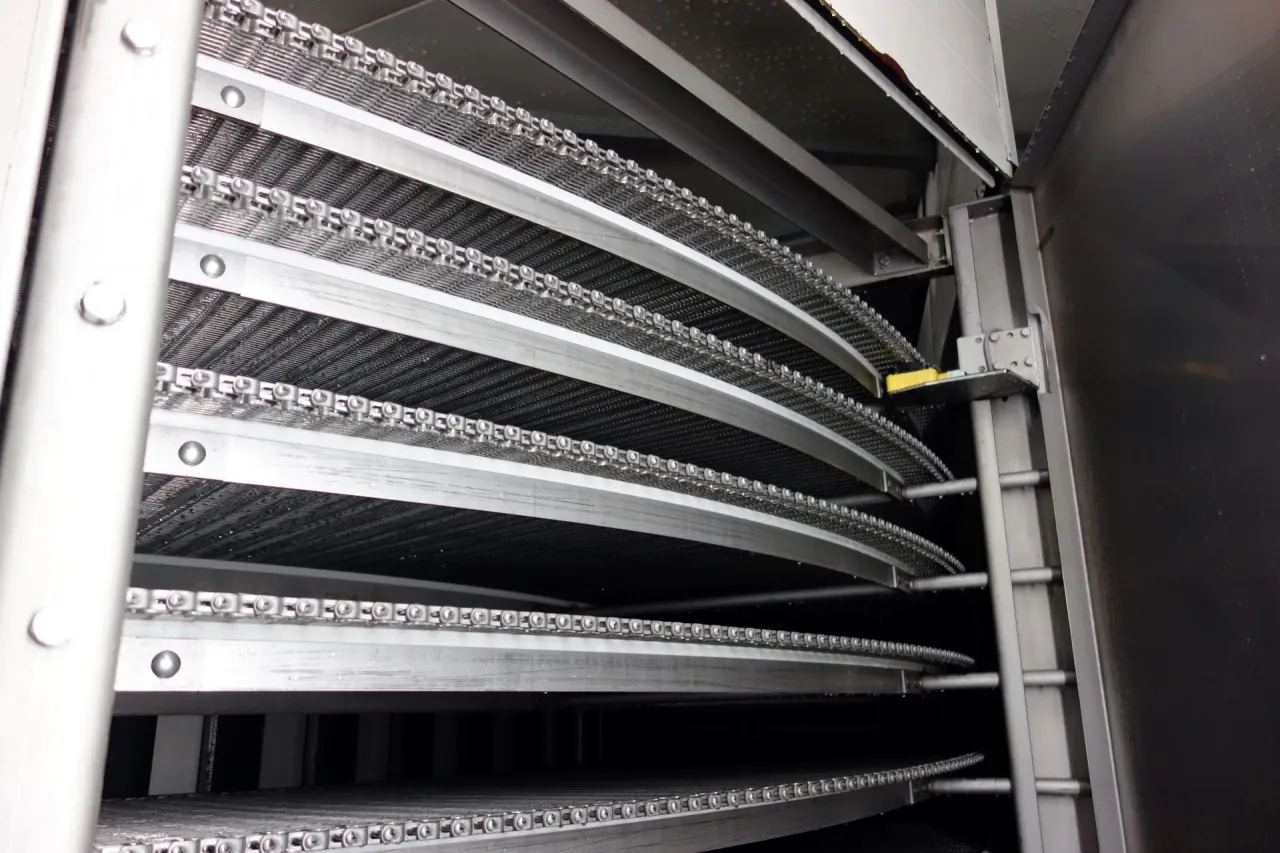

Version 1 - Compact and Versatile Freezing 简介 The Iqf Spiral Freezer saves floor space while delivering flexible, reliable freezing. It protects product quality, improves hygiene, and fits diverse production lines. 正文 The Iqf Spiral Freezer is designed for food processors that need high freezing efficiency within limited floor space. Its compact, multi-layer spiral structure occupies about one-third to one-half less space than conventional freezers of similar capacity. Both top-blow and lateral-blow airflow are available, while adjustable freezing times from 20 to 90 minutes support products with different sizes, temperatures, and processing requirements. The system handles prepared foods, small packages, cross-cut meats, ice cream, seafood, fruits, and vegetables. Its flexible configuration helps manufacturers simplify production while maintaining stable product quality across delicate produce and heavier meat products. LSJ Single Drum Spiral IQF Freezer LSJ Double Drum Spiral IQF Freezer Note: Feeding temperature: +15°C; discharging temperature: −18°C; refrigerant: R717 or R22. PRODUCT FEATURES 1. Compact Footprint: The multi-layer spiral arrangement increases usable belt length
Technical specifications
| Model | Capacity (kg/h) | Freezing Time (min) | Refrigeration Consumption (kW) | Install Power (kW) | Overall Dimension L×W×H (m) |
|---|---|---|---|---|---|
| LSJ-II-1000 | 1000 | 15–90 | 165 | 20 | 12.5×4.6×3.1 |
| LSJ-II-1500 | 1500 | 15–90 | 220 | 24 | 13.1×5.0×3.6 |
| LSJ-II-2000 | 2000 | 15–90 | 300 | 32 | 16.1×5.1×3.9 |
| LSJ-II-2500 | 2500 | 15–90 | 360 | 40 | 16.1×5.3×4.3 |
| LSJ-II-3000 | 3000 | 15–90 | 400 | 46 | 17.6×6×4.8 |
Applications
Suitable for export-oriented food processing and freezing lines. Final configuration depends on product, capacity, temperature and factory layout.
Technical specifications
| Model | Capacity (kg/h) | Freezing Time (min) | Refrigeration Consumption (kW) | Install Power (kW) | Overall Dimension L×W×H (m) |
|---|---|---|---|---|---|
| LSJ-II-1000 | 1000 | 15–90 | 165 | 20 | 12.5×4.6×3.1 |
| LSJ-II-1500 | 1500 | 15–90 | 220 | 24 | 13.1×5.0×3.6 |
| LSJ-II-2000 | 2000 | 15–90 | 300 | 32 | 16.1×5.1×3.9 |
| LSJ-II-2500 | 2500 | 15–90 | 360 | 40 | 16.1×5.3×4.3 |
| LSJ-II-3000 | 3000 | 15–90 | 400 | 46 | 17.6×6×4.8 |
Product video
Need help selecting this equipment?
Send your product, capacity and process requirements to our engineering team.
